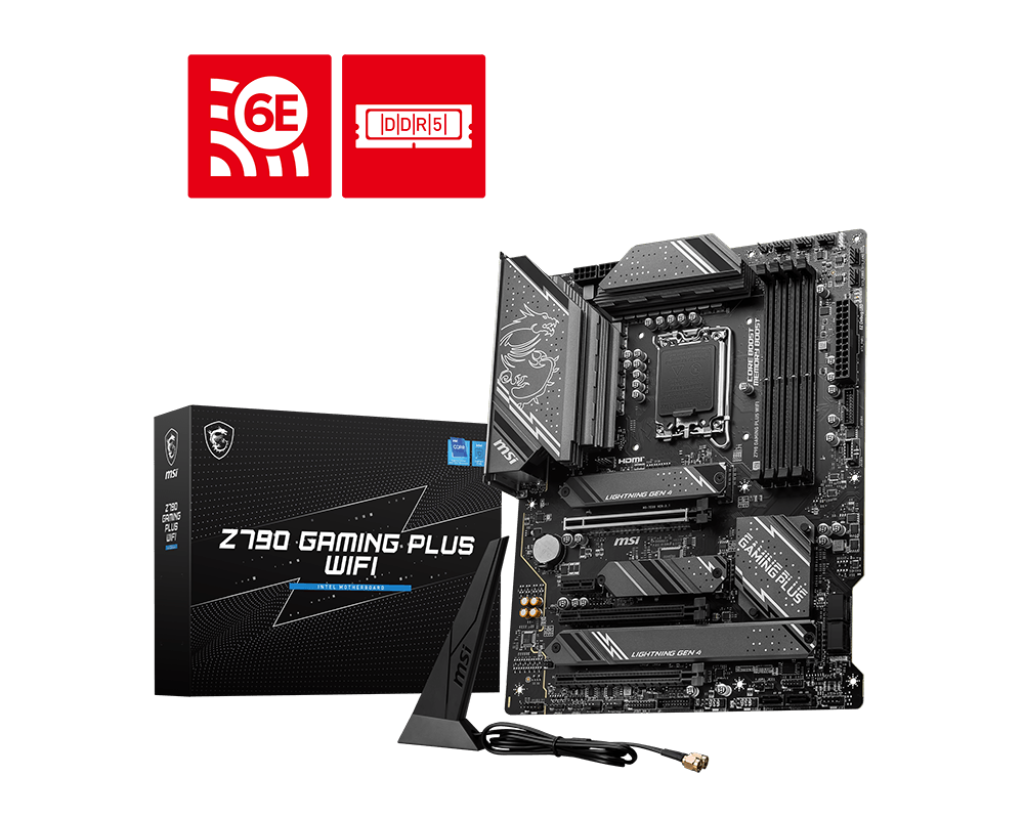

MSI Z790 GAMING PLUS WIFI LGA 1700 (Intel Core 14th / 13th / 12th Gen) Z790 ATX Motherboard

Availability: In stockSKU: 0019775

12765 EGP

Brand: MSI
Model: Z790 GAMING PLUS WIFI
Socket: LGA 1700 (Intel Core 14th / 13th / 12th Gen)
Chipset: Z790
Form Factor: ATX
RAM Type Support: DDR5
Max RAM Capacity: 256GB
RAM Slots: 4x DIMM (Dual Channel)
PCIe Version: PCIe 5.0
M.2 Slots: 4
Wi-Fi Support: Wi-Fi 6E
Warranty: 3 years

In stock

SKU: 0019775 Category:
Description

MSI Z790 GAMING PLUS WIFI for high-performance Intel builds

Built for modern Intel platforms, the MSI Z790 GAMING PLUS WIFI combines strong expansion support with practical features for a responsive desktop build. Its ATX layout and DDR5 support make it a solid fit for gaming systems and performance-focused workstations.

Performance & Compatibility

The socket supports Intel Core 14th, 13th, and 12th Gen processors, while the chipset delivers the platform foundation needed for capable system performance. With DDR5 memory support and up to 256GB across PCIe 5.0 expansion, it offers the headroom and bandwidth needed for demanding builds.

Technical Specifications

Specification Details
Brand MSI
Model Z790 GAMING PLUS WIFI
Socket LGA 1700 (Intel Core 14th / 13th / 12th Gen)
Chipset Z790
Form Factor ATX
RAM Type Support DDR5
Max RAM Capacity 256GB
RAM Slots 4x DIMM (Dual Channel)
PCIe Version PCIe 5.0
M.2 Slots 4
Wi-Fi Support Wi-Fi 6E
RGB Lighting Yes
Warranty 3 years
Audio Chipset Realtek ALC897
Lan Speed 2.5Gbps
Sata Ports 6x SATA 6G
Usb Type C Ports 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear)
Rgb Headers 2x Addressable V2 RGB LED connector, 2x RGB LED connector
Bluetooth 5.3
Debug Leds 4x EZ Debug LED
Flash Bios Button Yes

Additional Features

  • Audio Chipset: Realtek ALC897 provides onboard audio support for everyday gaming and desktop use.
  • Lan Speed: 2.5Gbps wired networking helps support faster data transfer and low-latency connections.
  • Flash Bios Button: Yes makes BIOS updating more convenient during setup or processor compatibility changes.
