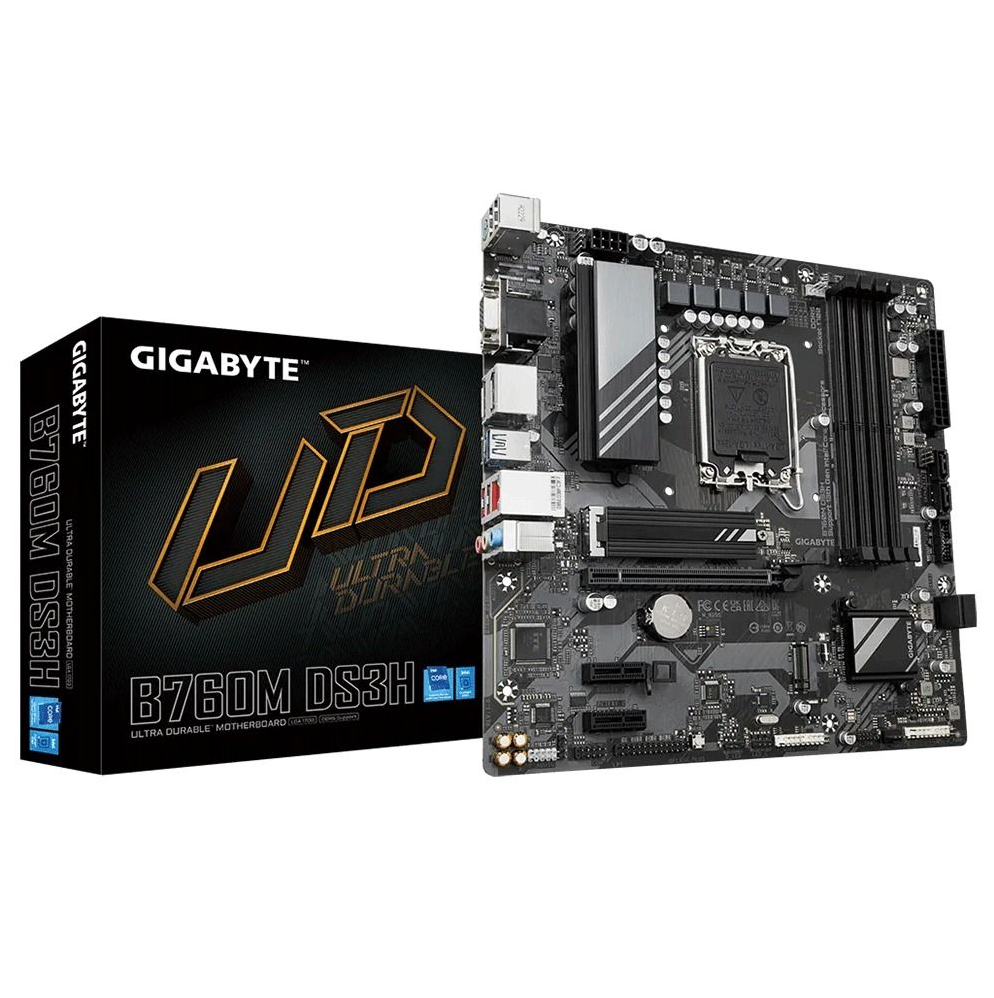

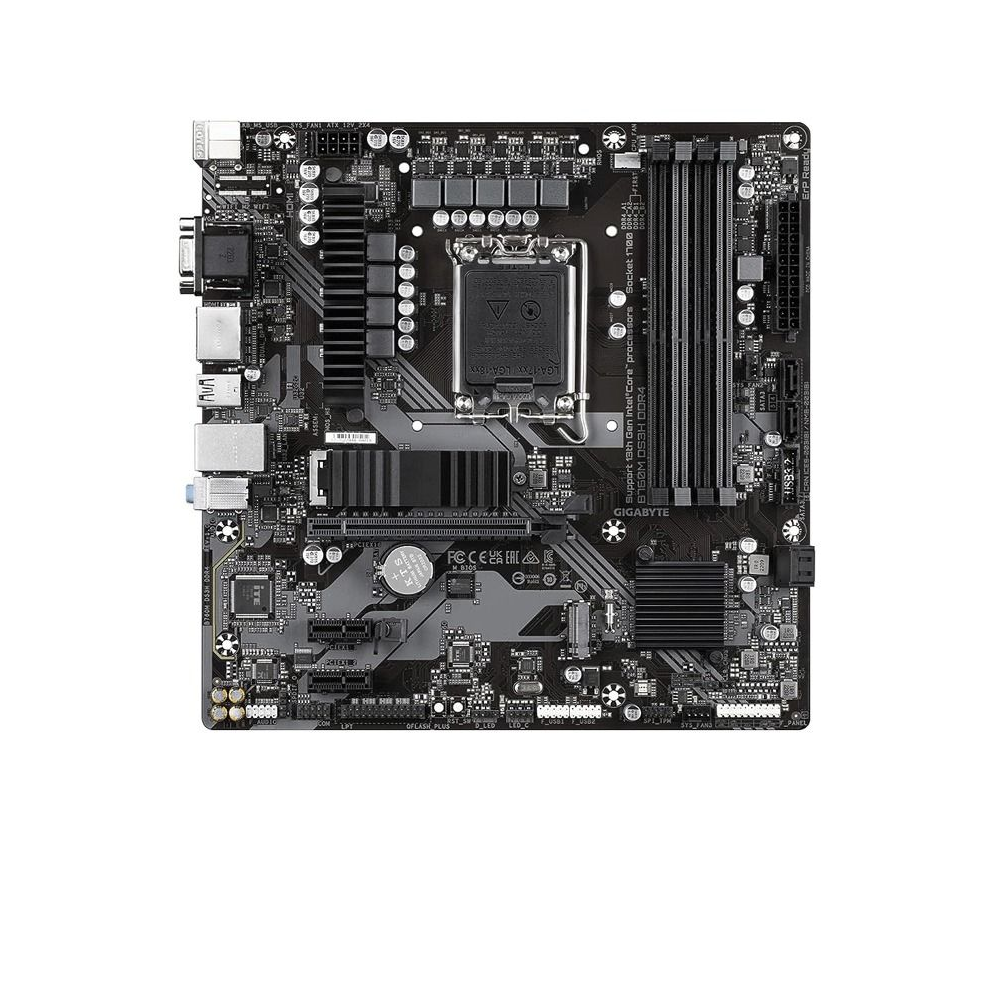

MB Gigabyte DDR4 B760M DS3h
6882 EGP
Brand: Gigabyte
Model: B760M DS3H DDR4
Socket: LGA 1700 (Intel Core 14th / 13th / 12th Gen)
Chipset: B760
Form Factor: Micro-ATX
RAM Type Support: DDR4
Max RAM Capacity: 128GB
RAM Slots: 4x DIMM (Dual Channel)
PCIe Version: PCIe 4.0
M.2 Slots: 2
Wi-Fi Support: No
RGB Lighting: ARGB & RGB
Color: Black
Warranty: 3 years
In stock
Gigabyte B760M DS3H DDR4 – Reliable Intel Platform with DDR4 Support
Built on the Intel B760 platform, this Micro-ATX motherboard pairs broad processor support with DDR4 memory compatibility for a practical and flexible system foundation. Its compact layout makes it a strong fit for balanced desktop builds that still need expansion options.
Performance & Compatibility
With an LGA 1700 (Intel Core 14th / 13th / 12th Gen) socket and B760 chipset, the Gigabyte B760M DS3H DDR4 is ready for a wide range of Intel CPUs while supporting DDR4 memory for an efficient and familiar platform. It also supports up to 128GB of memory and includes PCIe 4.0 for modern expansion bandwidth and storage flexibility.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Gigabyte |
| Model | B760M DS3H DDR4 |
| Socket | LGA 1700 (Intel Core 14th / 13th / 12th Gen) |
| Chipset | B760 |
| Form Factor | Micro-ATX |
| RAM Type Support | DDR4 |
| Max RAM Capacity | 128GB |
| RAM Slots | 4x DIMM (Dual Channel) |
| PCIe Version | PCIe 4.0 |
| M.2 Slots | 2 |
| Wi-Fi Support | No |
| RGB Lighting | ARGB & RGB |
| Color | Black |
| Warranty | 3 years |
| Revision | 1.0 |
| CPU Support | 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Dual Channel Memory Architecture | Yes |
| ECC Unbuffered DIMM Support | Yes |
| XMP Support | Yes |
| Display Outputs | 1 x D-Sub, 1 x HDMI, 2 x DisplayPort |
| PCIe X16 Slot | 1 x PCI Express 4.0 x16 slot (running at x16) |
| PCIe X1 Slots | 2 x PCI Express 3.0 x1 slots |
| SATA Ports | 4 x SATA 6Gb/s connectors |
| LAN Speed | 2.5 Gbps/1 Gbps/100 Mbps |
| Audio Codec | Realtek Audio CODEC |
| USB Type C Port | 1 x USB Type-C port on back panel (USB 3.2 Gen 2) |
| USB 3.2 Gen 1 Ports | 5 |
| USB 2.0 Ports | 6 |
| Q Flash Plus | Yes |
| Clear Cmos Jumper | Yes |
Additional Features
- Q Flash Plus: Makes BIOS updates more convenient, helping simplify setup and maintenance.
- Clear Cmos Jumper: Provides a quick way to reset BIOS settings when troubleshooting or changing configurations.
- LAN Speed: Supports wired networking speeds up to 2.5 Gbps for fast, flexible connectivity.
