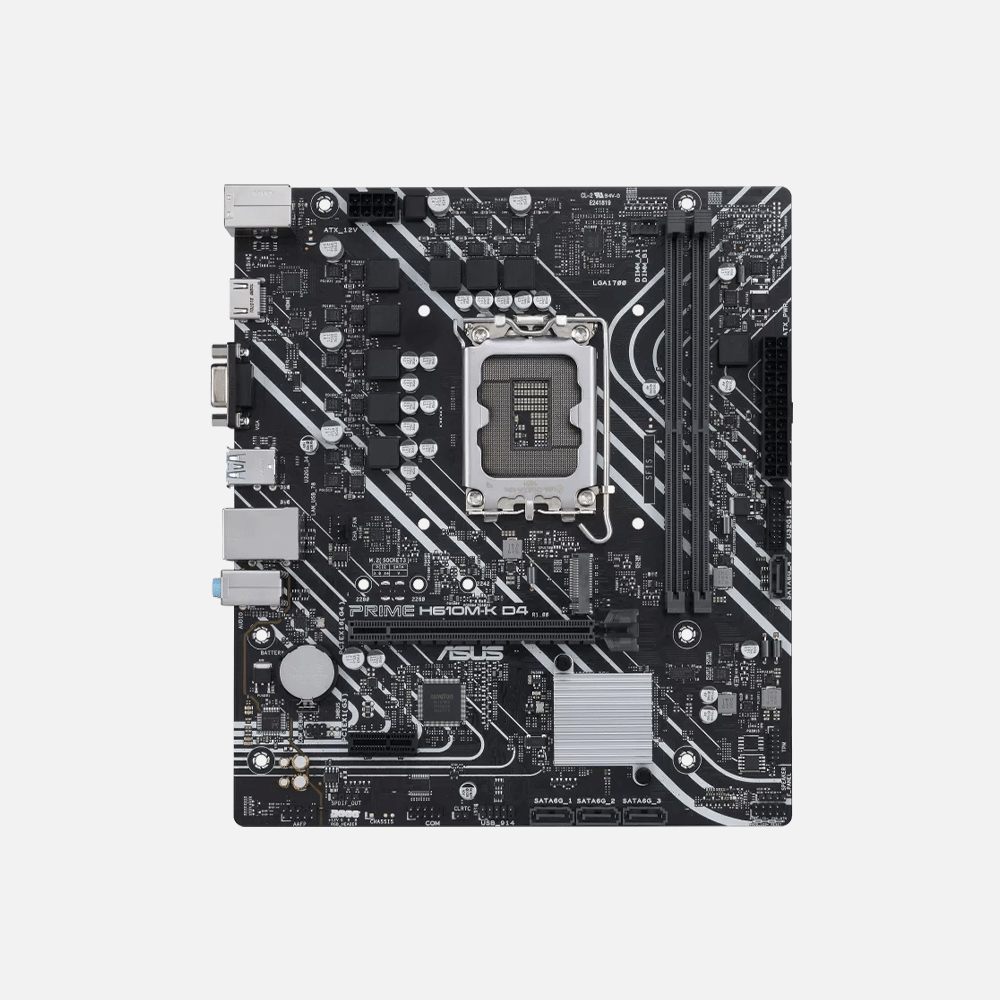

ASUS PRIME H610M-K D4 LGA 1700 (Intel Core 14th / 13th / 12th Gen) H610 Micro-ATX Motherboard
4329 EGP
Brand: ASUS
Model: PRIME H610M-K D4
Socket: LGA 1700 (Intel Core 14th / 13th / 12th Gen)
Chipset: H610
Form Factor: Micro-ATX
RAM Type Support: DDR4
Max RAM Capacity: 64GB
RAM Slots: 2x DIMM (Dual Channel)
PCIe Version: PCIe 4.0
M.2 Slots: 1 Slot (1x PCIe 3.0 x4/SATA)
Wi-Fi Support: No
In stock
ASUS PRIME H610M-K D4 – Reliable Intel Platform for Everyday Builds
The ASUS PRIME H610M-K D4 delivers a compact Micro-ATX foundation with DDR4 support and broad Intel processor compatibility. It is a practical choice for streamlined systems that need dependable performance and flexible expansion.
Performance & Compatibility
Built around the LGA 1700 (Intel Core 14th / 13th / 12th Gen) socket and H610 chipset, this board supports DDR4 memory for a balanced mix of compatibility and value. With support for up to 64GB of RAM and PCIe 4.0, it offers a solid base for responsive everyday computing and modern expansion.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASUS |
| Model | PRIME H610M-K D4 |
| Socket | LGA 1700 (Intel Core 14th / 13th / 12th Gen) |
| Chipset | H610 |
| Form Factor | Micro-ATX |
| RAM Type Support | DDR4 |
| Max RAM Capacity | 64GB |
| RAM Slots | 2x DIMM (Dual Channel) |
| PCIe Version | PCIe 4.0 |
| M.2 Slots | 1 Slot (1x PCIe 3.0 x4/SATA) |
| Wi-Fi Support | No |
| Ethernet | Realtek 1 Gb Ethernet |
| USB 3.2 Gen 1 Ports | 2 x USB 3.2 Gen 1 ports (Type-A) |
| SATA Ports | 4 x SATA 6Gb/s |
| Audio Jacks | 3 x Audio jacks |
| RGB Header | 1 x RGB header |
| USB 3.2 Gen 1 Header | 1 x USB 3.2 Gen 1 header |
| USB 2.0 Header | 1 x USB 2.0 header |
| USB 2.0 Ports | 4 x USB 2.0 ports (Type-A) |
| COM Header | COM header |
| Display Outputs | HDMI® port, D-Sub port |
| CPU Support | Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| M.2 Details | 1 x M.2 2280 (PCIe 3.0 x4 & SATA modes) |
| Expansion Slots | 1 x PCIe 4.0 x16 SafeSlot Core, 1 x PCIe 3.0 x1 |
| Cooling | PCH heatsink and Fan Xpert |
| Protection | 5X Protection III |
Additional Features
- Ethernet: Realtek 1 Gb Ethernet provides wired network connectivity for stable everyday use.
- Protection: 5X Protection III adds multiple built-in safeguards designed to help improve long-term reliability.
- Cooling: PCH heatsink and Fan Xpert support thermal management for better system control.
| Weight | 1 kg |
|---|---|
| Dimensions | 23.4 × 20.3 cm |
| Socket | LGA1700 |
| ram_support | DDR4 |
| isWifi | no wifi |
