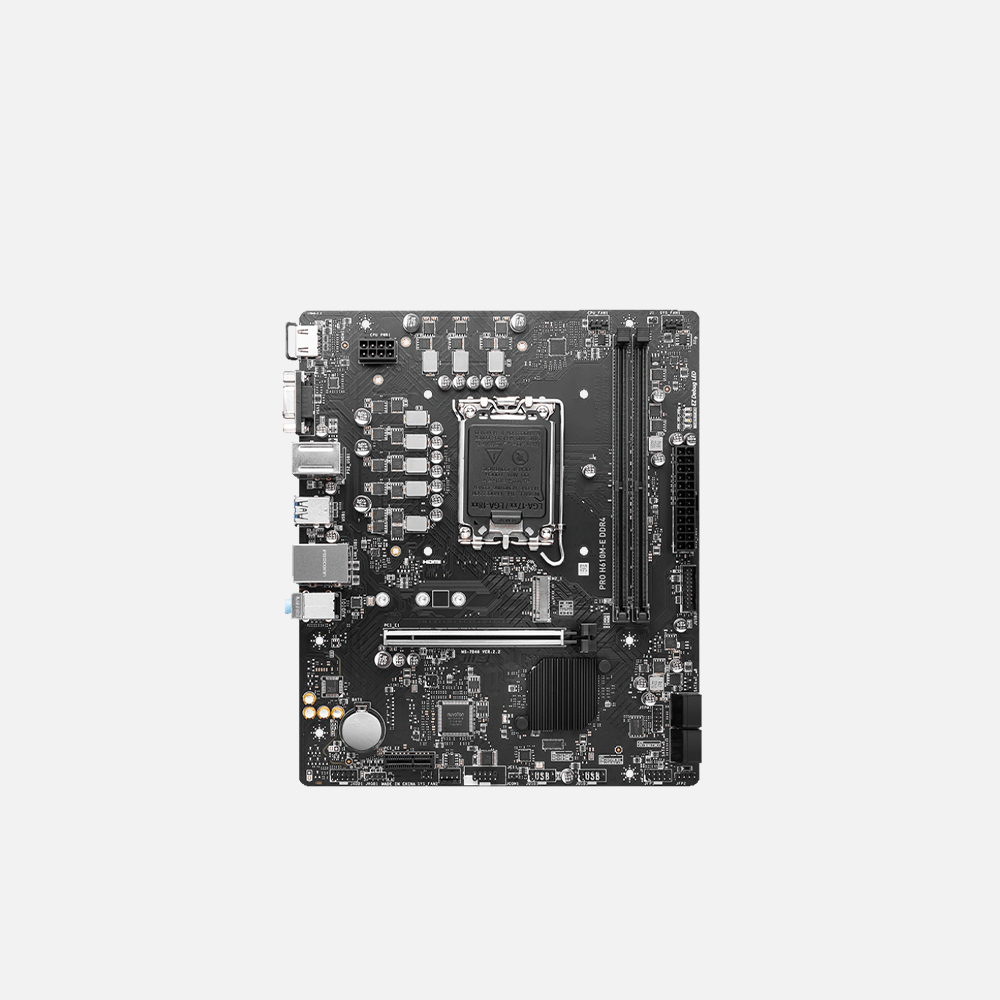

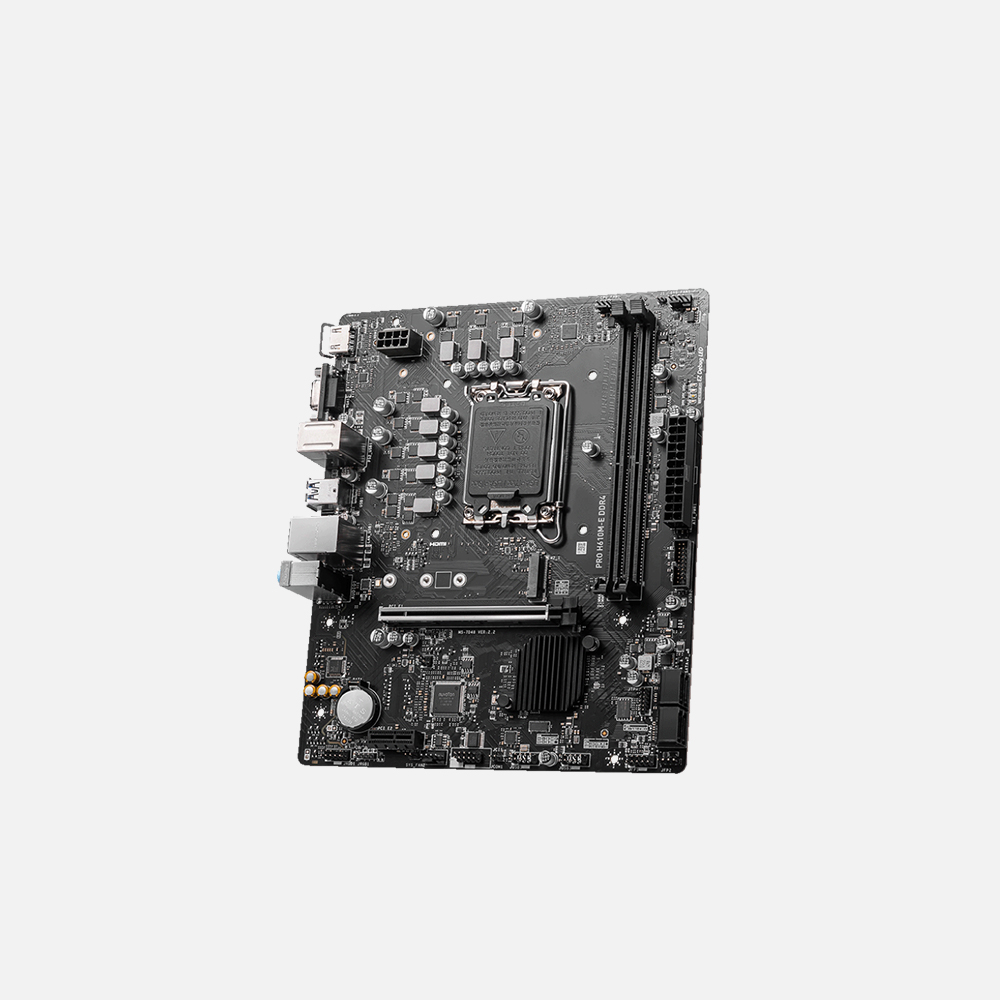

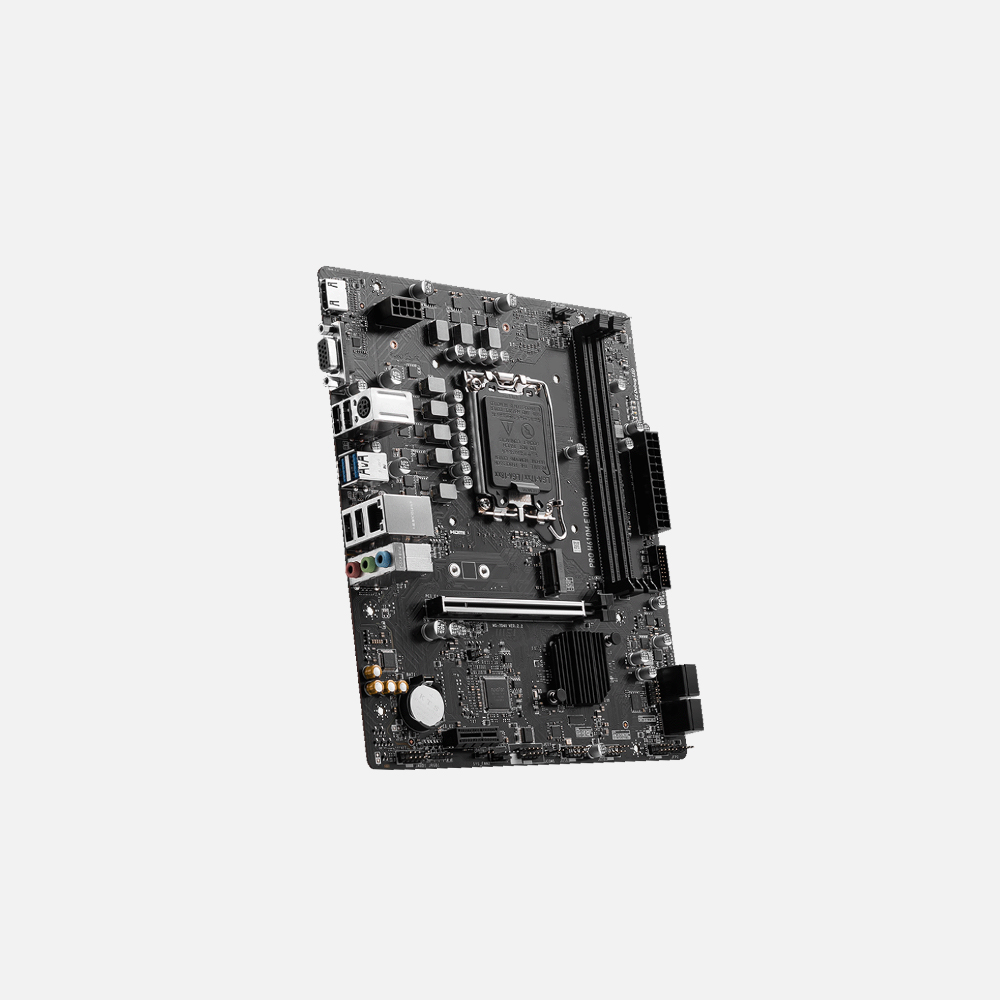

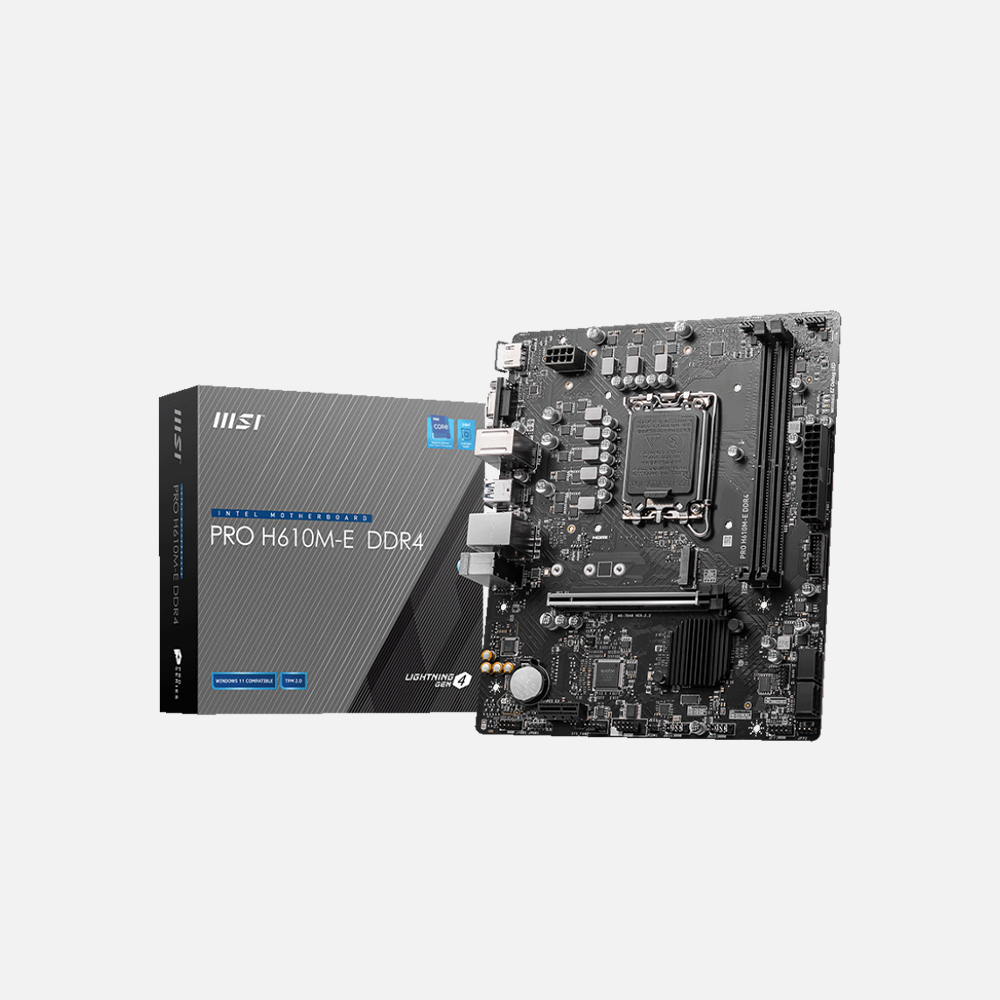

MSI PRO H610M-E DDR4 LGA 1700 (Intel Core 14th / 13th / 12th Gen) H610 Micro-ATX Motherboard
4163 EGP
Brand: MSI
Model: PRO H610M-E DDR4
Socket: LGA 1700 (Intel Core 14th / 13th / 12th Gen)
Chipset: H610
Form Factor: Micro-ATX
RAM Type Support: DDR4
Max RAM Capacity: 64GB
RAM Slots: 2x DIMM (Dual Channel)
PCIe Version: PCIe 4.0
M.2 Slots: 1 Slot (1x PCIe 3.0 x4)
Wi-Fi Support: No
Warranty: 3 years
In stock
MSI PRO H610M-E DDR4 for Reliable Intel Core 14th, 13th, and 12th Gen Builds
The MSI PRO H610M-E DDR4 brings essential Intel platform support in a compact Micro-ATX layout. It is a practical foundation for builds that need dependable compatibility and straightforward expansion.
Performance & Compatibility
Built around the LGA 1700 (Intel Core 14th / 13th / 12th Gen) socket and H610 chipset, this board is designed to work with a wide range of modern Intel processors. With DDR4 memory support, 64GB maximum capacity, and PCIe 4.0 expansion, it offers a balanced platform for responsive everyday performance and flexible upgrade potential.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | PRO H610M-E DDR4 |
| Socket | LGA 1700 (Intel Core 14th / 13th / 12th Gen) |
| Chipset | H610 |
| Form Factor | Micro-ATX |
| RAM Type Support | DDR4 |
| Max RAM Capacity | 64GB |
| RAM Slots | 2x DIMM (Dual Channel) |
| PCIe Version | PCIe 4.0 |
| M.2 Slots | 1 Slot (1x PCIe 3.0 x4) |
| Wi-Fi Support | No |
| Warranty | 3 years |
| Sata Ports | 4 |
| Tpm Header | 1 |
| Usb 3 2 Front Ports | 2(Gen 1, Type A) |
| Usb 3 2 Rear Ports | 2(Gen 1, Type A) |
| Usb 2 0 Front Ports | 4 |
| Usb 2 0 Rear Ports | 4 |
| Audio Codec | Realtek® ALC897 Codec |
| Vga Ports | 1 |
| Hdmi Ports | 1 |
| Directx Support | 12 |
| Cpu Support | Support for Windows® 11 64-bit, Windows® 10 64-bit |
Additional Features
- Audio Codec: The Realtek® ALC897 Codec provides onboard audio support for standard desktop listening and communication needs.
- USB 3 2 Front Ports: 2(Gen 1, Type A) front-panel ports help keep high-speed accessories within easy reach.
- TPM Header: A 1 TPM header supports compatible security module setups for added system security options.
| Socket | LGA1700 |
|---|---|
| ram_support | DDR4 |
| isWifi | no wifi |
